OV2640 120deg Wide Lens 2MP Camera Module | ATMOSFÆR ENGINEERING

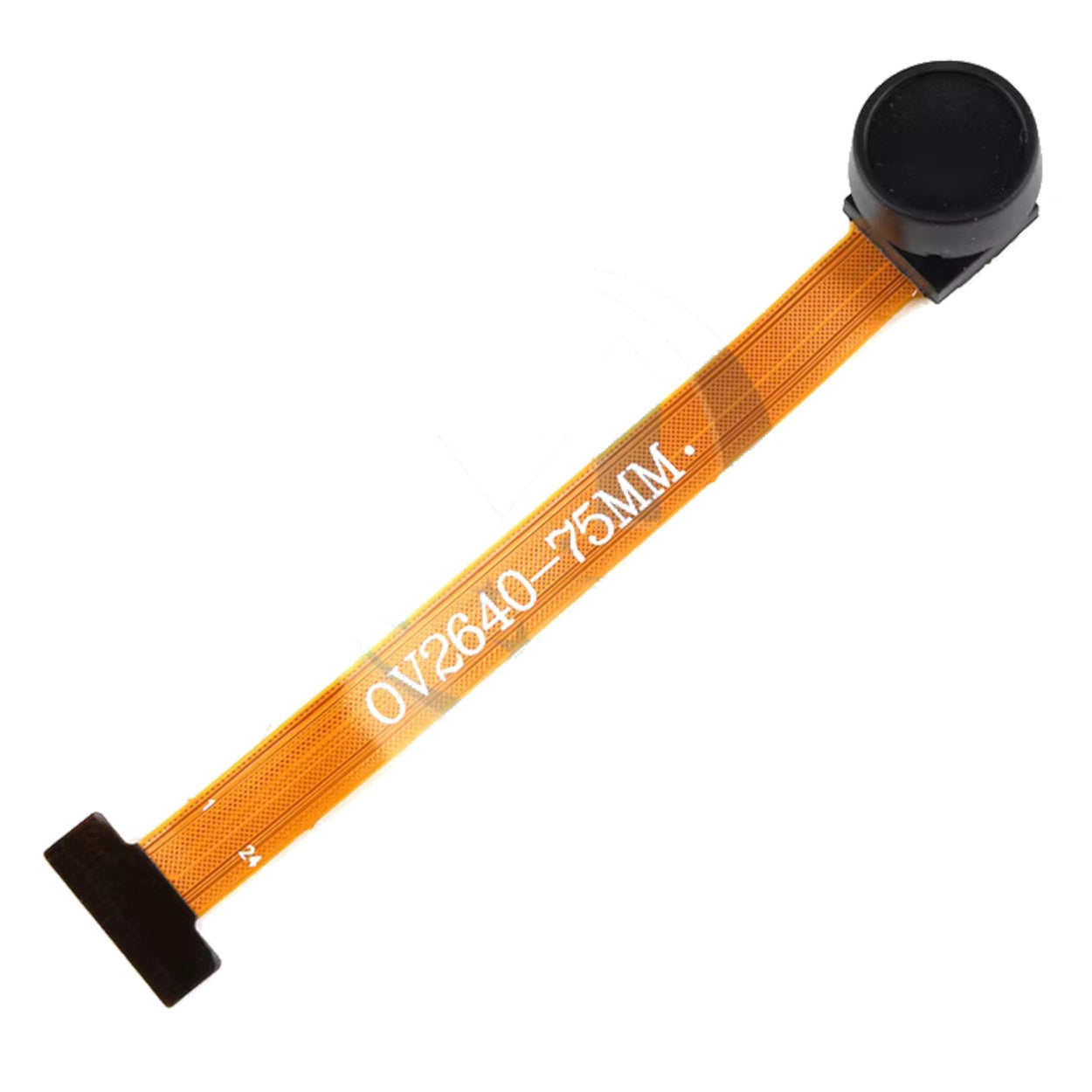

OV2640 UXGA Camera Module with 75mm Cable

Compact 2MP camera module featuring the OV2640 CMOS sensor with SCCB interface. Optimized for low-light performance and embedded portable applications, this module includes automatic exposure control, white balance, and advanced image processing features. 120° wide-angle lens provides excellent field of view for surveillance, robotics, and IoT vision applications.

Technical Specifications:

• Sensor: OV2640 CMOS
• Resolution: UXGA (1600×1200 max)
• Array Size: 1600×1200 pixels
• Lens: 120° wide-angle, 1/4" format
• Cable Length: 75mm
• Power Supply: 2.5V - 3.0V (analog core), 1.7V - 3.3V (I/O)
• Power Consumption: 125mW active (15fps UXGA/UV mode), 140mW (15fps compressed), 600µA standby
• Interface: Standard SCCB (I2C-compatible)
• Output Formats: Raw RGB (RGB565/555), GRB422, YUV (422/420), YCbCr (4:2:2), 8-bit compressed
• Frame Rates: UXGA/SXGA @ 15fps, SVGA @ 30fps, CIF @ 60fps
• Image Sizes: UXGA, SXGA, SVGA, scalable down to 40×30
• Chief Ray Angle: 25° non-linear
• Pixel Size: 2.2µm × 2.2µm
• Sensitivity: 0.6 V/Lux-sec
• S/N Ratio: 40dB
• Dynamic Range: 50dB
• Image Area: 3590µm × 2684µm
• Operating Temperature: 0°C to 50°C (stable image)

Advanced Features:

• Automatic Exposure Control (AEC)
• Automatic Gain Control (AGC)
• Automatic White Balance (AWB)
• Automatic Band Filter (ABF)
• Automatic Black-Level Calibration (ABLC)
• VarioPixel sub-sampling
• Color saturation, gamma, sharpness (edge enhancement)
• Lens correction, white pixel canceling
• Noise canceling, 50/60Hz luminance detection
• Line optical black level output
• Zoom, pan, windowing functions
• Internal/external frame synchronization
• Variable frame rate control
• LED and flash strobe support
• Image scaling and compression
• Video or snapshot operation modes

Compatible with ESP32-CAM, Arduino, STM32, Raspberry Pi, and other microcontroller platforms with SCCB/I2C support.
