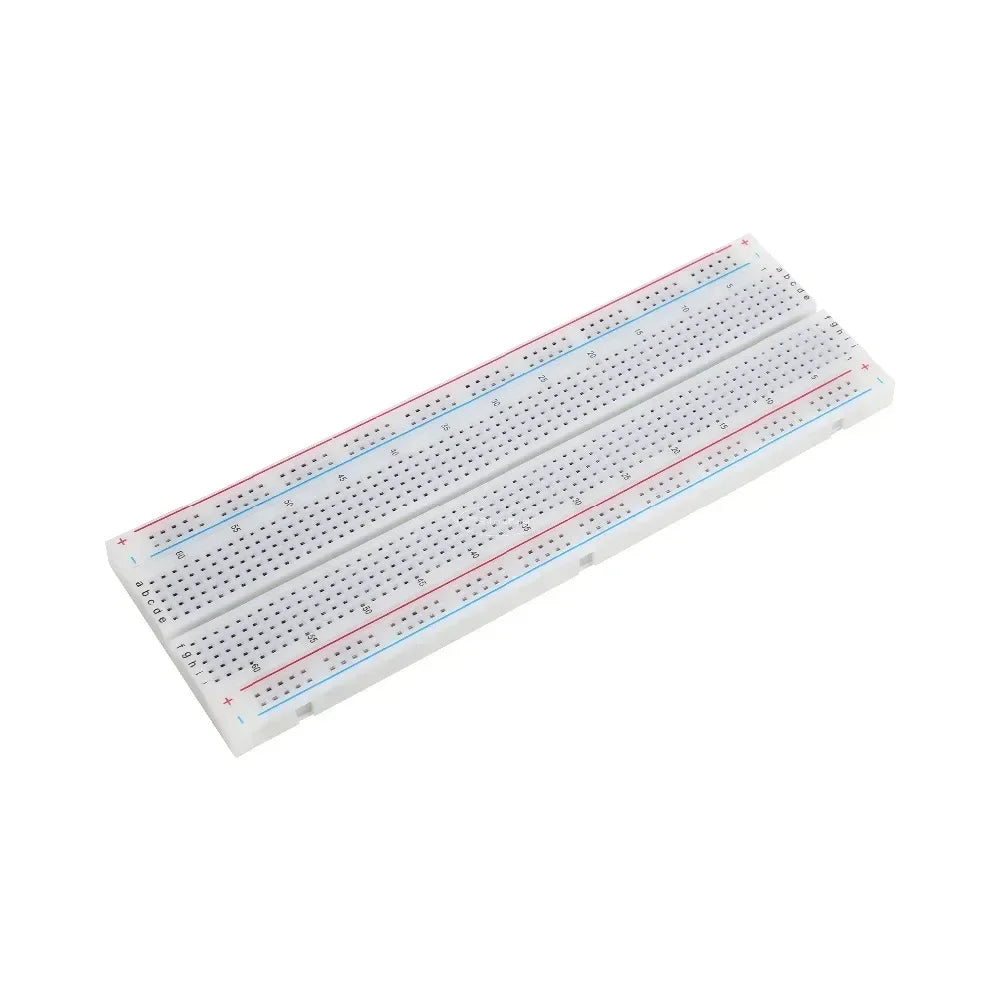

MB-102 Solderless Breadboard 830 Points | ATMOSFÆR ENGINEERING

High-quality solderless prototyping breadboard with 830 connection points for building and testing circuits without soldering. Features two power distribution rails and standard 2.54mm (0.1") pitch compatible with DIP ICs, jumper wires, and component leads. Durable ABS construction with nickel-plated phosphor bronze contacts. Essential tool for electronics prototyping, Arduino projects, and circuit testing.

Technical Specifications:

• Model: MB-102 Standard Breadboard
• Total Tie Points: 830 connection points
• Terminal Strip: 630 jacks (63 columns x 10 rows, 2 groups of 5)
• Power Rails: 2 distribution bars with 200 jacks (50 points per rail x 4 rails)
• Grid Spacing: 2.54mm (0.1" standard pitch)
• Wire Gauge Compatibility: 20-29 AWG (0.3-0.8mm diameter)
• Recommended Wire: 0.8mm jumper wires (included or sold separately)
• Contact Material: Nickel-plated phosphor bronze springs
• Body Material: ABS plastic (high-quality)
• Dimensions: 165mm x 55mm x 10mm (L x W x H) / 6.5" x 2.2" x 0.4"
• Color: White body with colored power rail markings (red/blue typical)
• Mounting: Self-adhesive backing (typically)
• Operating Temperature: -20°C to +80°C

Layout:

• Main Terminal Area: 63 columns x 10 rows (2 groups of 5 rows each)
  • Each column has 5 internally connected points
  • Center gap for DIP IC placement (0.3" spacing)
• Power Distribution Rails: 4 rails (2 per side)
  • Red (+) and Blue (-) markings
  • 50 connection points per rail
  • Typically not interconnected between top/bottom

Features:

• Solderless design for reusable connections
• Standard 0.1" pitch compatible with most components
• Self-adhesive backing for secure mounting
• Multiple breadboards can be connected side-by-side
• Dual power rails on each side for voltage distribution
• Clear hole numbering (columns 1-63, rows a-j)
• Durable spring contacts maintain connection integrity

Compatible Components:

• DIP integrated circuits (up to 28 pins)
• Resistors, capacitors, LEDs, diodes
• Transistors, voltage regulators
• Sensors and modules with 2.54mm headers
• Jumper wires (solid core, 22-24 AWG recommended)
• Arduino, ESP32, Raspberry Pi Pico with headers

Applications:

• Circuit prototyping and testing
• Arduino and microcontroller projects
• Electronics education and learning
• Sensor testing and development
• Analog and digital circuit design
• Power supply prototyping
• Signal processing experiments

Usage Tips:

• Use solid-core wire (22-24 AWG) for best connections
• Avoid excessive insertion/removal cycles on same hole
• Bend component leads at right angles for neat layout
• Power rails typically need jumper connection between top/bottom sections
• Clean contacts periodically for reliable connections

Typical Setup:

• Connect power supply (+/-) to power distribution rails
• Insert ICs across center gap (pins in separate groups)
• Use jumper wires to connect components
• Build circuit row-by-row for organization

Important Notes:

• Accepts wire diameter 0.3mm - 0.8mm (20-29 AWG)
• Solid-core wire recommended (stranded may cause poor contact)
• Do not exceed 1A per power rail
• Component leads should be straight and clean for good contact
• Power rails may not be interconnected - use jumpers to connect top/bottom

Perfect for students, hobbyists, makers, and professionals for rapid circuit prototyping and testing. Essential tool for any electronics workbench.
