ESP32-S3-DevKitC-1 N16R8 Development Board

High-performance dual-core development board featuring the ESP32-S3 with 16MB Flash and 8MB PSRAM. Designed for AI/ML applications, voice recognition, and complex IoT projects requiring significant memory and processing power. Includes WiFi 2.4GHz, Bluetooth 5.0 (LE), and rich peripheral support with USB-OTG functionality.

Technical Specifications:

• MCU: ESP32-S3-WROOM-1-N16R8
• CPU: Dual-core Xtensa LX7 (32-bit)
• Clock Speed: Up to 240 MHz
• Memory: 16MB Flash, 8MB PSRAM (Octal SPI), 512KB SRAM
• Wireless: WiFi 802.11b/g/n (2.4GHz), Bluetooth 5.0 (LE)

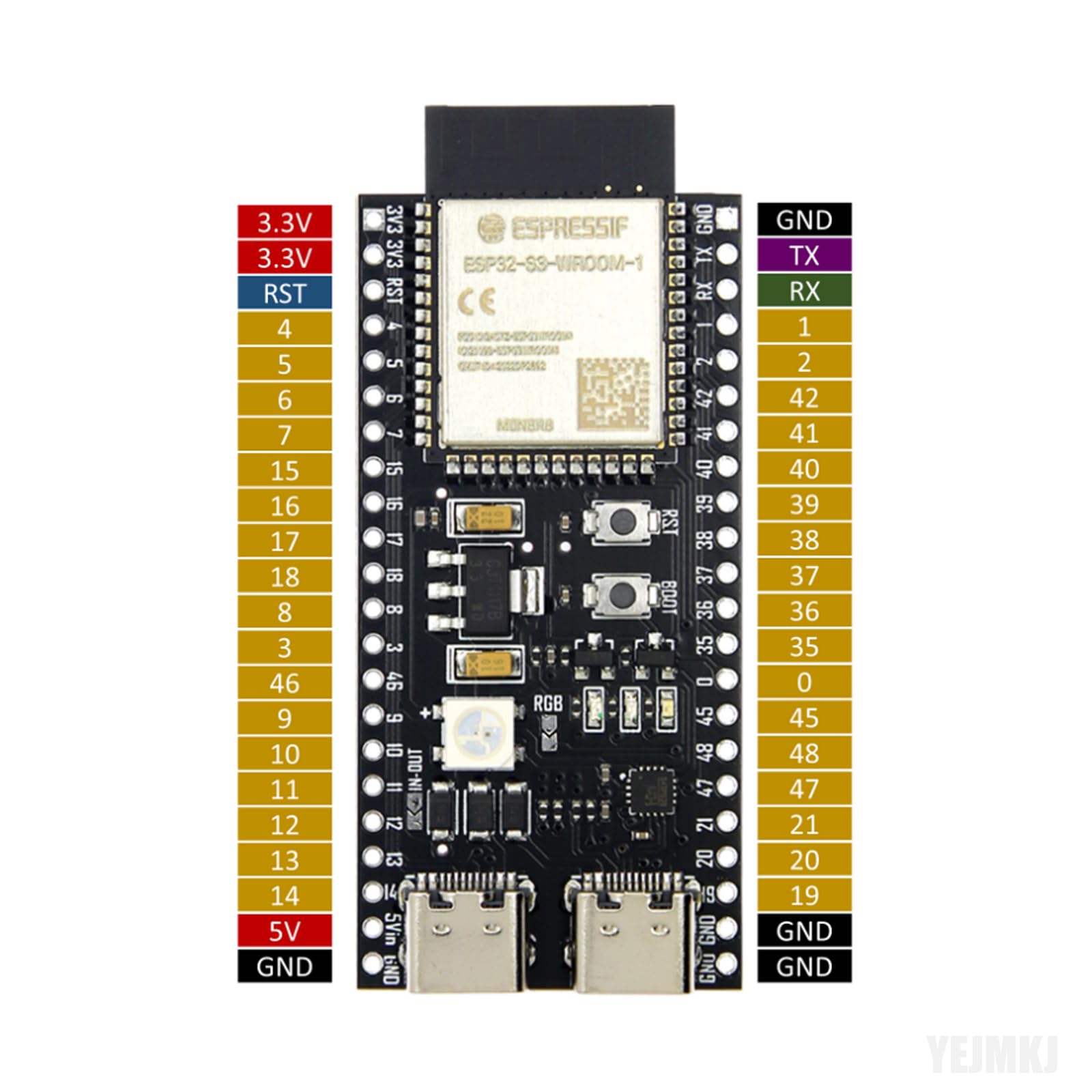

• GPIO Pins: 36 programmable GPIOs
• Analog Inputs: 2x 12-bit SAR ADCs (up to 20 channels)
• Interfaces: I2C, I2S, SPI, UART, USB-OTG, TWAI (CAN 2.0)
• PWM: 8 channels (LED PWM controller)
• Touch Sensors: 14 capacitive touch GPIOs
• Power Supply: 5V via USB-C or 3.3V-5V on VIN pin
• USB: Native USB-OTG (full-speed)
• Security: AES, SHA, RSA, RNG, secure boot, flash encryption
• Onboard LED: RGB LED (WS2812)
• Dimensions: 25.4mm x 55.9mm (approx)
• Operating Temperature: -40°C to +85°C

Ideal for edge AI, image processing, voice applications, and advanced IoT systems requiring high memory bandwidth.
