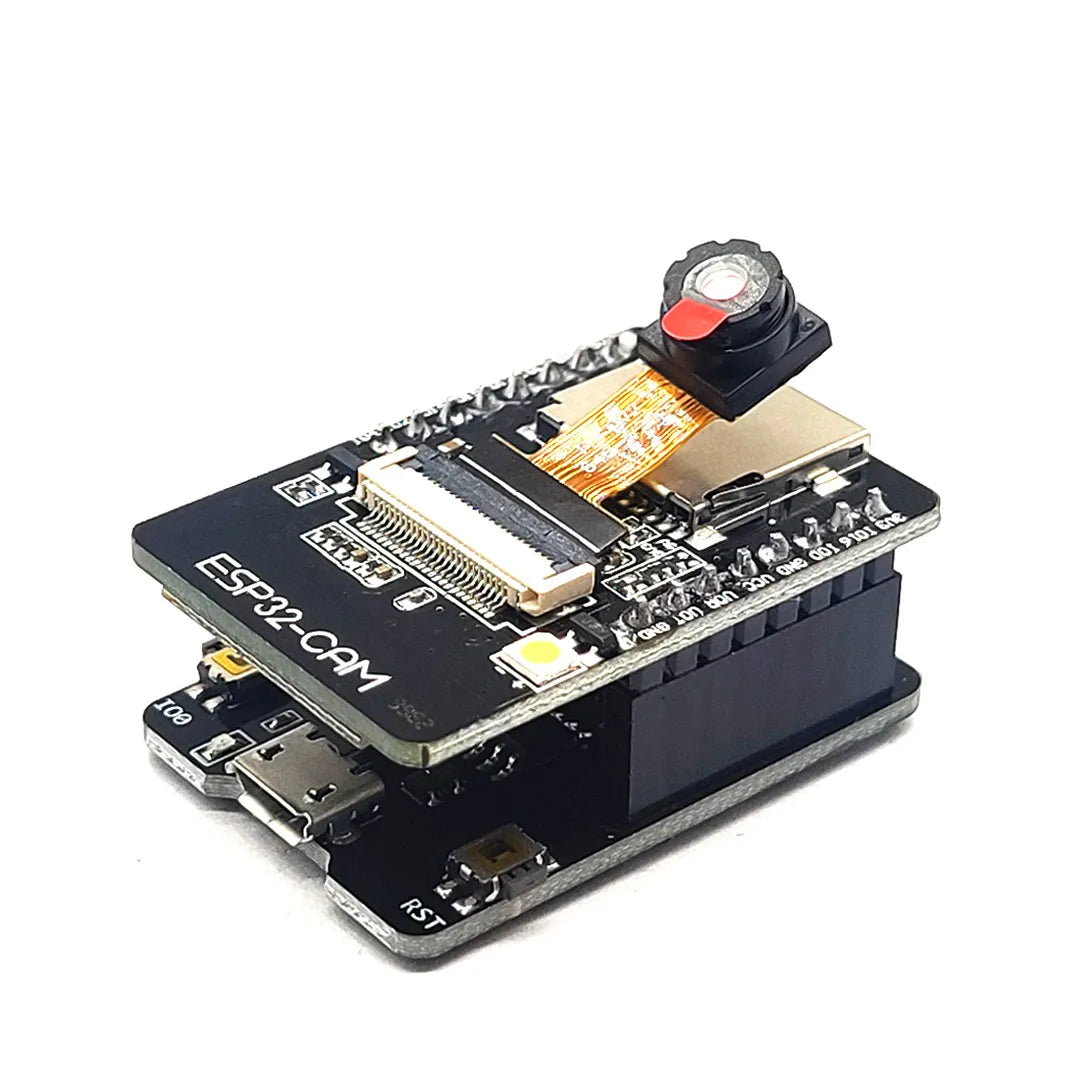

ESP32-CAM Development Board with OV2640 Camera & USB Programmer

Complete ESP32 camera solution featuring the ESP32-CAM board with integrated OV2640 2MP camera module and USB programming board. Ideal for IoT vision projects, wireless surveillance, smart home devices, and facial recognition applications. Includes built-in WiFi/Bluetooth connectivity, microSD card slot, and onboard flash LED.

Technical Specifications:

ESP32-CAM Module:

• MCU: ESP32-S (Tensilica Xtensa LX6 dual-core)
• Clock Speed: Up to 240 MHz
• Memory: 520KB SRAM, 4MB PSRAM, 4MB Flash
• Wireless: WiFi 802.11 b/g/n (2.4GHz), Bluetooth 4.2 BR/EDR + BLE
• Power Supply: 5V (recommended) or 3.3V
• Deep Sleep Current: ~6mA @ 5V
• GPIO Pins: Multiple digital I/O, ADC, PWM, I2C, SPI, UART
• MicroSD Card: Supports 4GB-32GB (FAT32)
• Onboard Flash LED: GPIO 4
• Antenna: PCB trace antenna + external antenna connector (u.FL)
• Dimensions: 27mm x 40mm x 12mm (approx)

OV2640 Camera Module (AF2569):

• Sensor: OV2640 CMOS (1/4")
• Resolution: 2MP (UXGA 1600×1200 max)
• Common Modes: VGA (640×480), SVGA (800×600), CIF (352×288)
• Output Formats: JPEG, RGB565, YUV422
• Interface: 24-pin FPC connector
• Lens: Standard lens (included)
• Operating Voltage: 1.7V - 3.3V
• Features: Auto exposure, white balance, saturation, contrast adjustment

USB Programming Board:

• Interface: Micro USB
• Chip: CH340G USB-to-serial converter
• Auto-reset: Automatic boot/flash mode switching
• Power: Provides 5V to ESP32-CAM
• Compatibility: Works with Arduino IDE (select "AI Thinker ESP32-CAM")

Key Features:

• No external FTDI programmer needed - includes USB programming board
• Onboard image processing and JPEG compression
• Supports video streaming and still image capture
• Face detection and recognition capable (via software)
• Multiple sleep modes for battery-powered applications
• Compatible with Arduino IDE, ESP-IDF, PlatformIO

Applications:

• Wireless security cameras and surveillance
• Smart doorbells and home automation
• IoT vision systems and robotics
• QR code scanning and identification
• Time-lapse photography
• Motion detection systems

Compatible with Arduino IDE, ESP-IDF, and common ESP32 libraries. Programmable via USB with included programming board - no additional hardware required.
