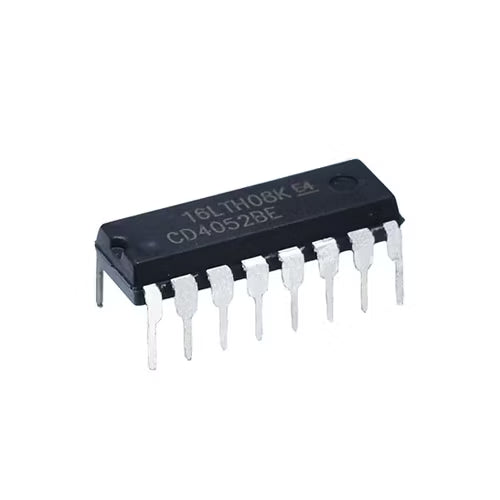

CD4052BE Dual 4-Channel Analog Multiplexer/Demultiplexer | ATMOSFÆR ENGINEERING

CMOS logic IC featuring two independent 4-channel analog multiplexers/demultiplexers with digital control. Allows routing of analog or digital signals between one common I/O and four independent channels per switch. Bidirectional operation enables both multiplexing (many-to-one) and demultiplexing (one-to-many) configurations. Ideal for expanding limited microcontroller analog inputs, signal routing, and audio/sensor switching applications.

Technical Specifications:

• IC Type: CMOS Analog Multiplexer/Demultiplexer
• Package: DIP-16 (Dual In-line Package)
• Channels: 2 independent 4-channel switches
• Supply Voltage: 3V - 20V (VDD-VSS)
• Typical Operating Voltage: 5V, 12V, 15V
• Control Inputs: 2 binary address lines (A, B) + INH (inhibit) per switch
• On-Resistance: 80Ω (typical @ VDD-VSS = 15V)
• Signal Range: Rail-to-rail (VSS to VDD)
• Switching Speed: ~40ns (typical)
• Crosstalk: -50dB @ 1MHz
• Power Consumption: Low static power (quiescent ~0.5μW @ 5V)
• Operating Temperature: -55°C to +125°C
• Logic Levels: CMOS compatible
• Output: Bidirectional (analog or digital signals)

Pin Configuration:

• Channels: Y0-Y3 (Switch 1), Z0-Z3 (Switch 2)
• Common I/O: Y (Switch 1), Z (Switch 2)
• Control: A, B address lines, INH (inhibit)
• Power: VDD, VSS, VEE (substrate connection)

Truth Table:

• INH=High: All channels OFF
• INH=Low: Channel selected by A,B inputs (00=Ch0, 01=Ch1, 10=Ch2, 11=Ch3)

Applications:

• Expanding Arduino/ESP32 analog inputs (read multiple sensors with one ADC pin)
• Audio signal routing and mixing
• Sensor multiplexing (temperature, light, pressure)
• Signal path switching in test equipment
• Data acquisition systems
• Analog/digital signal routing in embedded systems

Compatible with 5V Arduino, ESP32 (with level shifting), and other microcontrollers. Bidirectional operation allows flexible signal routing configurations.
