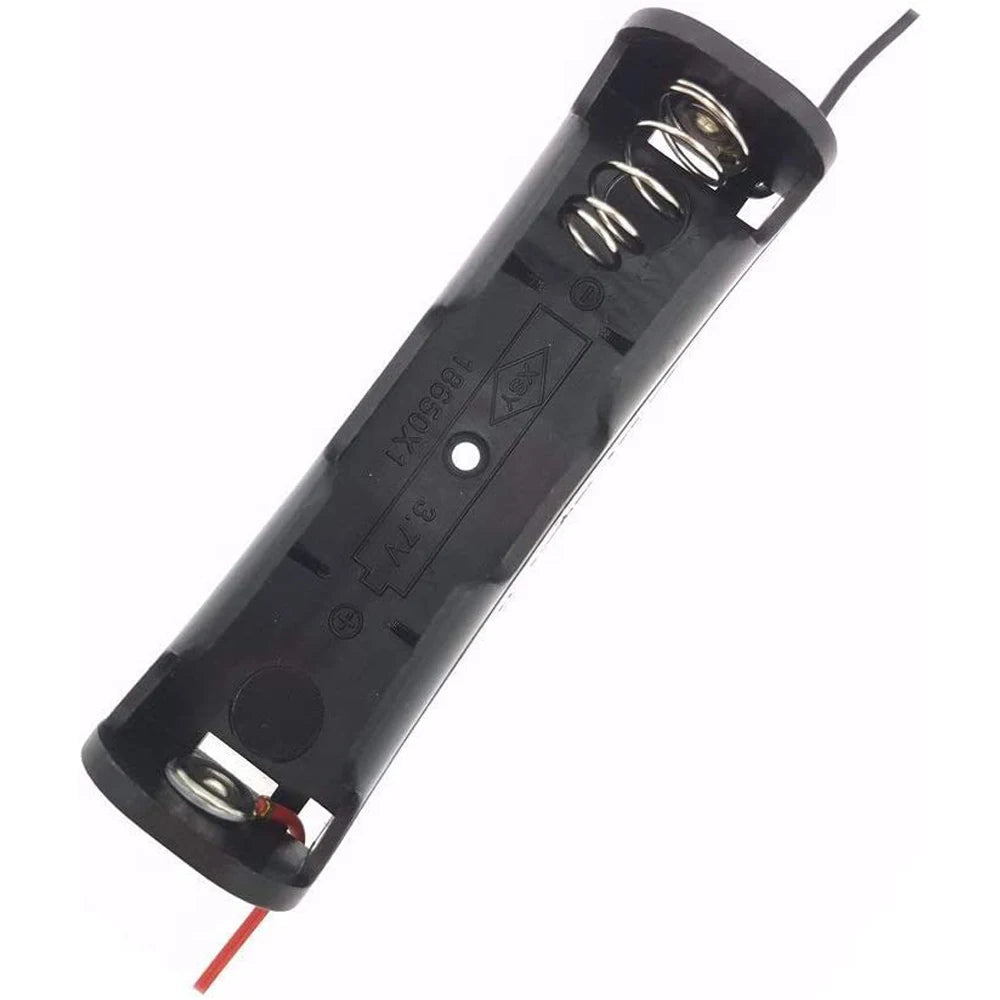

18650 Battery Holder 1-Cell | ATMOSFÆR ENGINEERING

Plastic battery holder for single 18650 lithium-ion cells with pre-attached wire leads for easy soldering or connecting. Spring-loaded contacts ensure reliable electrical connection. Compact design ideal for DIY battery packs, portable power projects, and prototype builds.

Technical Specifications:

• Battery Type: Single 18650 Li-ion cell
• Voltage: 3.6V - 4.2V (per cell)
• Contact Type: Spring-loaded clips with solder tabs/wire leads
• Material: High-quality ABS plastic
• Wire Leads: Pre-attached (red: positive, black: negative)
• Mounting: PCB mount or standalone
• Dimensions: 72mm x 20mm x 19mm (L x W x H)
• Color: Black

Features:

• Secure spring contact for reliable connection
• Pre-wired leads for easy integration
• Compact and lightweight design
• Can be connected in series/parallel for multi-cell packs

Applications:

• DIY battery packs (power banks, flashlights)
• Prototyping battery-powered projects
• Arduino/ESP32 portable power supplies
• LED lighting systems
